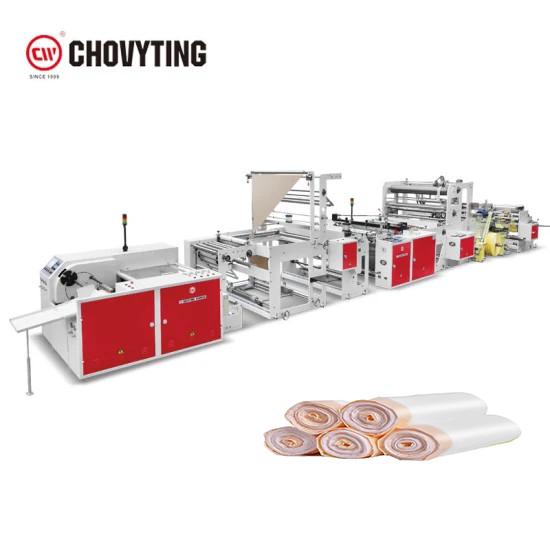

LDPE HDPE Automatic Garbage Bag Making Machine 80pcs/min


LDPE HDPE Automatic Garbage Bag Making Machine 80pcs/min

Brand Name : CHOVYTING

Model Number : CW-1000PG+OR

Certification : CE & ISO

Place of Origin : CHINA


Price : 75000-145000USD/SET

Payment Terms : L/C, T/T, D/P

Supply Ability : 300SETS/YEAR

Delivery Time : 80DAYS

Packaging Details : Wooden pallet with stretch film

Characteristic : High Production

Product Name : HDPE LDPE Rolling Garbage Bag

Speed of Bag Making : 60-80pcs/min

Bag Type : Rolling Garbage Bag

Sealing & Cutting : Heat Sealing with Perfor

Length of bag making : Weinview Taiwan

Cylinder : Shako Taiwan

PLC : Panasonic Japan

Specification : 12500*2800*3000mm(L*W*H)

Switch and button : Idec Japan

Contact Now

Automatic Interleaved Draw Tape Bag on Roll Making Machine HDPE LDPE Rolling Garbage Bag Making Machine

Product Description

Brief Introduction

Drawstring and draw tape bags are preferred in many applications for their functionality and ease of use. The drawstring is pulled to tighten around the opening of the bag, helping to seal contents inside. Model CW-1000PG can produce "Perforation on Roll"on customers' needs. It is for an Easy-life style!


1. This machine is to make both overlap and perforation rolling bag
2. Rewinder with 4 servo motor control
3. Chovyting is the only one manufacturer for this equipment in China

Technical Variable:

ModelCW -1000PG+OR
Length of Bag making500-900mm
Width of Bag making400-1000mm
Speed of Bag making100pcs/min
Line Speed60m/min
Unwinder Width1000mm
Unwinder Diameter900mm(max)
Rewinder Width300mm
Rewinder Max. Diameter1300mm(max)
Finished roll exchange times7rolls/min
Film thickness0.025-0.06mm
Total power2.1KW
Weight of machine4500KG
overcall dimension15000*25800*3000mm
Air compressor7.5HP

Detailed Photos


1.Unwinding adopt AC motor drive type active feeding, large diameter design, reduce downtime. Driven by a frequency converter to control tension, which can be automatically along with the change of tension and roll diameter change speed
2.The unwinder has EPC device
3.Adopt automatic vacuum-pressure loading the mother material
4.Equip with non-material,or the material is cut,the machine automatically stop device.
5.The unwinding tension is action feeding type
6.The material for this machine are the normal rolling tube material or the material which is already folded by film blowing machine. The material can be HDPE,LDPE,LLDPE,and recycle material.

Interleaved device

Fully automatic four servo system design - no core winding, automatic positioning, automatic volume change. Winding traction with Japan yaskawa servo motor automatic control winding speed. Roll change adopts Japan yaskawa servo motor control, accurate positioning.

About Us

Chovyting machinery company started in 1999 and has steadily grown to be a leading name in the field of plastic bag converting machinery. It seamlessly blends professional acumen with personal experiences of its founders and employees. Reliability and quality go hand-in-hand with the company’s brand.

Our facility in China comprises of a dedicated team of 150 extremely skilled and qualified workers consisting of engineers, specialists and technicians. It is equipped with CNC machines and special tools where all aspects of manufacture, assembly and testing are carried out by the respective departments. All critical machine components are manufactured and assembled in-house using the latest technology, thereby ensuring high quality and standards of all the products.

Over the years, we have successfully implemented 4500 installations in over 25 countries. What sets us apart is an active interest in all aspects of the business. We go out of the way to maintain a personal touch with all our customers, regardless of the location, which keeps us one step ahead of our competitors.

- Interested customers are able to see live machine demonstration during visit
- Fast machine delivery thanks to strong manufacturing capability

- CE certified machines with total quality control
- Machines are designed, engineered and built with the highest standards and components

- Adopts the latest design and manufacturing of screw and barrel to achieve maximum efficiency
- This makes sure energy saving and reduces the operation cost for our clients

Production Capacity:

Product Line Name Production Line Capacity Actual Units Produced (Previous Year)
Bag Making Machine; Film Blowing Machine; Printing Machine; Slitting Machine Bag Making Machine: 30 Sets / Month, Film Blowing Machine: 25 Sets / Month, Printing Machine: 15 Sets / Month, Slitting Machine: 15 Sets / Month Bag Making Machine: 320 Sets, Film Blowing Machine: 200 Sets, Printing Machine: 100 Sets, Slitting Machine: 100 Sets


Q1- Is your company a factory or a trading company?
A1- CHOVYTING is a factory

Q2- Where is your factory? How can i visit your company?
A2- CHOVYTING located in Ruian city, Zhejiang province, China. Its about 40 minutes from shanghai by plane (4 hours by train). All our clients from home and abroad are warmly welcome to visit us.

Q3- What is the suitable material for your machines?
A3- PE, OPP, Composite material, etc. Are suitable for CHOVYTING machines

Q4- What is type machines do you have?
A4 - special for all of plastic bag making machine, like shopping bag, diaper bag, courier bag, stand up zipper pouch ,rolling garbage bag, bread bag, chicken bag etc...

Q5- How many years of your factory
A5- CHOVYTING MACHINERY setted up in 1999

Q6- What is certificate of machine do you have
A6- CE, ISO 2016, and more than 100 piece Patent of machine

Q7- What about your company the development of your company
A7- CHOVYTING Titled as “National key and new products” and Pass identification of the provincial new product; and honored as”patent model enterprise”

Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2008 to now, and also K show in German, NPE in America, Arabplast in Dubai, Plastic Eurasia in Turkey etc.

Q9- how many workers from your company
A9- CHOVYTING has more than 150 employees

Q10-what is size of your factory
A10- CHOVYTING factory place have more than 10000 Square meters
