Large Thick Bottom Heat Sealing Bag Making Machine 60pcs/min

ZHEJIANG CHOVYTING MACHINERY CO., LTD

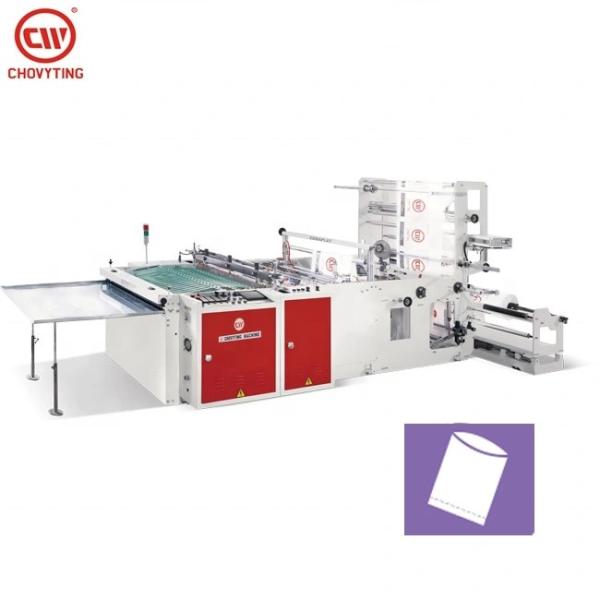

Large Thick Bottom Heat Sealing Bag Making Machine 60pcs/min

Brand Name : CHOVYTING

Model Number : CW-1000SBD

Certification : CE & ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : 20000-42000USD/SET

Payment Terms : L/C, T/T, D/P

Supply Ability : 300SETS/YEAR

Delivery Time : 80DAYS

Packaging Details : Wooden pallet with stretch film

Feature : High Accurateness

Product Name : Bottom Heat Sealing Bag Making Machine

Inverter : Yaskawa Japan

Servo motor : Yaskawa Japan

Speed of bag making : 40-60pcs/min

Top folding edge : 50-75mm

Bottom gusset : 20-70mm

PLC : Panasonic Japan

Solid state relay : Fotek Taiwan

Switch and button : Idec Japan

Contact Now

High quality bottom heat sealing big large thick bag making machine

Product Description

Brief Introduction
The machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity, less machine vibration under high-speed running. Feeding motor, automatic control, save labor adjusted, stability in operation professional technician is not necessary. Any different type of the bag with several use as option, easy to replace.Fully automatic double line production achieves double output of high productivity to save the labor.

Standard components including PE side weld bar, easy change double weld bar, bottom weld bar and PP weld bar can be optional.

Optional:

• Different type of punching unit

• zipper and slider equipment

• Longitudinal sealing device

• Perforation equipment

• Round bottom seal for chicken bag

• Glue adhesive tape device

• DHL bag (courier service bag)equipment/ Security bag equipment

• Bottom triangle sealing device

• Auto Conveyor Table

• Folding Unit

• double sealing bar

• bottom sealing bar

• pp material sealing bar

Technical Variable:
Type CW-1000SBD
Length(Height) of bag making 250-1500mm
Width of bag making 250-950mm
Top folding edge 50-75mm
Bottom gusset 20-70mm
Speed of bag making 40-60pcs/min


Detailed Photos

Large Thick Bottom Heat Sealing Bag Making Machine 60pcs/min

Unwind part

Adopt automatic adjust the tension. Unwinding shaft is air expanding shaft. Unwinding with EPC(Edge Position Control System)

Large Thick Bottom Heat Sealing Bag Making Machine 60pcs/min

Auto collection table

Collect table adopt automatic collecting bag feeding (intermission model and continuum model). When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing.Collect table is driven by Micro-motor reducing servo

About Us

CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. Since the company entered the new factory in 2017, it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production opetations, so that to receive a higher rating from customer after use. In terms of production technology, CHOVYTING continuously purchases the world’s top CNC large scale machining centers to make parts processing more precise and standardized, and combines a strong R&D team and continuous innovation to develop various professional machinery to provide customers with complete technology and thoughful service.

CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.

Today, CHOVYTING is the largest manufacturer of bag making machines in China, and has long-term strategic cooperation with senior engineers from Germany, Italy, Spain, the United States and Taiwan to absorb the largest and most comprehensive mechatronics technology.

Large Thick Bottom Heat Sealing Bag Making Machine 60pcs/min

1. ISO 9001:2000, GSG, SGS, CE, Production Assessment, Gold Supplier certificated
2. With 16 patents for different machines, for eg, CW-800BFS wicket bag machine and CW-800NJT glue patch bag making machine is our Exclusive products in CHINA mainland
3. Perfect after-sale system, setted up more than 5 Agents in Chile, Egypt, Pero, Mexico more than 5 experienced technicians work abroad.
4. Yearly Production Capacity -- 300-400 sets

Large Thick Bottom Heat Sealing Bag Making Machine 60pcs/min

Production Capacity:

Product Line Name Production Line Capacity Actual Units Produced (Previous Year)
Bag Making Machine; Film Blowing Machine; Printing Machine; Slitting Machine Bag Making Machine: 30 Sets / Month, Film Blowing Machine: 25 Sets / Month, Printing Machine: 15 Sets / Month, Slitting Machine: 15 Sets / Month Bag Making Machine: 320 Sets, Film Blowing Machine: 200 Sets, Printing Machine: 100 Sets, Slitting Machine: 100 Sets

FAQ:

Q1- Is your company a factory or a trading company?
A1- CHOVYTING is a factory


Q2- Where is your factory? How can i visit your company?
A2- CHOVYTING located in Ruian city, Zhejiang province, China. Its about 40 minutes from shanghai by plane (4 hours by train). All our clients from home and abroad are warmly welcome to visit us.


Q3- What is the suitable material for your machines?
A3- PE, OPP, Composite material, etc. Are suitable for CHOVYTING machines


Q4- What is type machines do you have?
A4 - special for all of plastic bag making machine, like shopping bag, diaper bag, courier bag, stand up zipper pouch ,rolling garbage bag, bread bag, chicken bag etc...


Q5- How many years of your factory
A5- CHOVYTING MACHINERY setted up in 1999


Q6- What is certificate of machine do you have
A6- CE, ISO 2016, and more than 100 piece Patent of machine


Q7- What about your company the development of your company
A7- CHOVYTING Titled as “National key and new products” and Pass identification of the provincial new product; and honored as”patent model enterprise”


Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2008 to now, and also K show in German, NPE in America, Arabplast in Dubai, Plastic Eurasia in Turkey etc.


Q9- how many workers from your company
A9- CHOVYTING has more than 150 employees


Q10-what is size of your factory
A10- CHOVYTING factory place have more than 10000 Square meters
